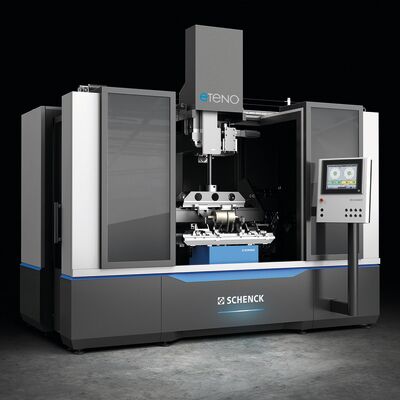

The eTENO is the perfect solution for balancing eDrives or simillar rotors up to 50 kg fully automatically and with high precision.
Maximum flexibility

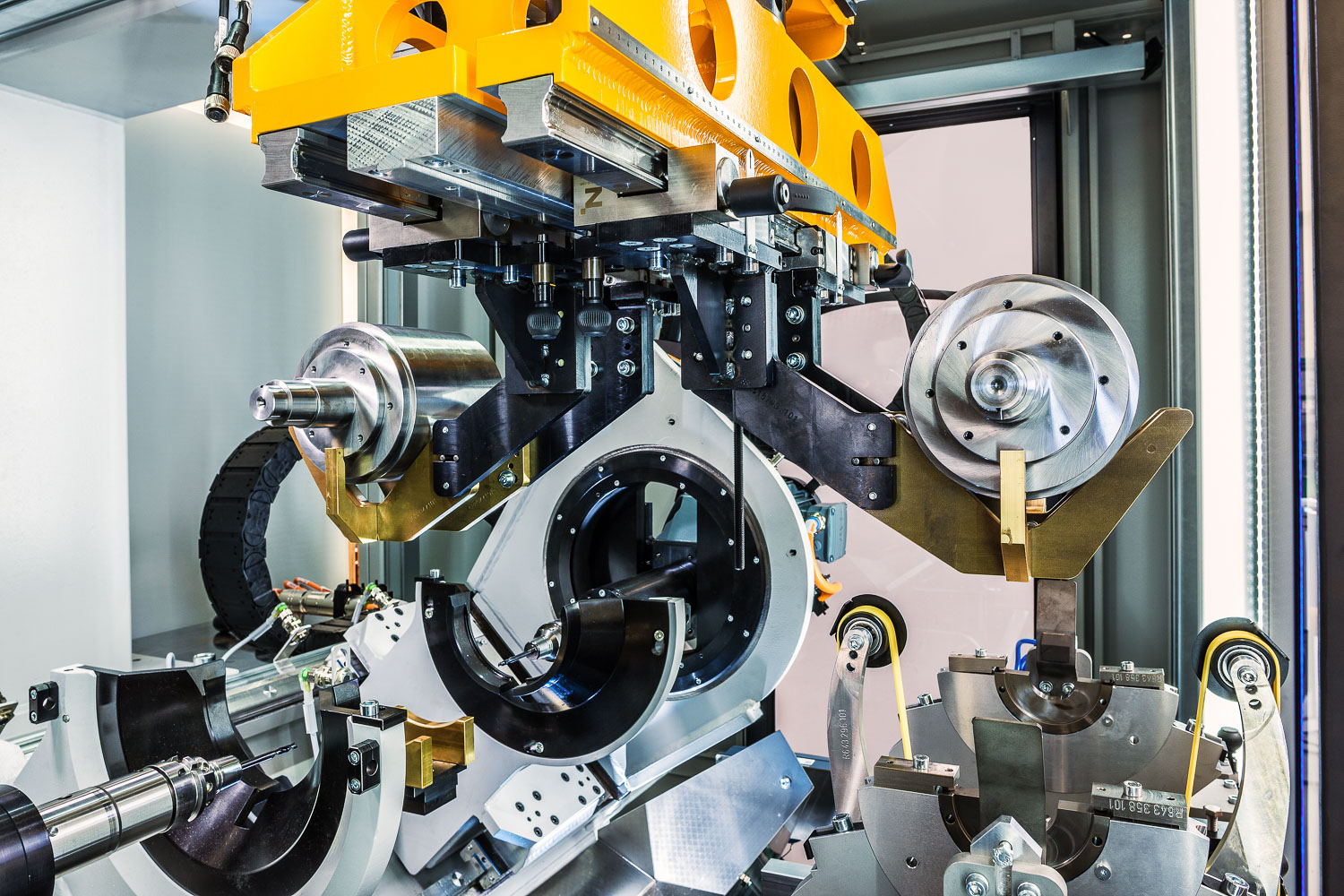

The eTENO offers maximum flexibility thanks to the two-station concept with a separate measuring and balancing station. The two-station concept enables significantly shorter cycle times and better measurement and correction results. This concept also allows flexible storage in the measuring station z. B. with prisms, idlers or aerostatic bearings for highest precision. In the balancing station a variety of correctiion options such as axial drilling, radial drilling, radial slot milling, axial / radial finger milling, additive correction are possible - all with the highest balancing quality.
Easy installation and Change over

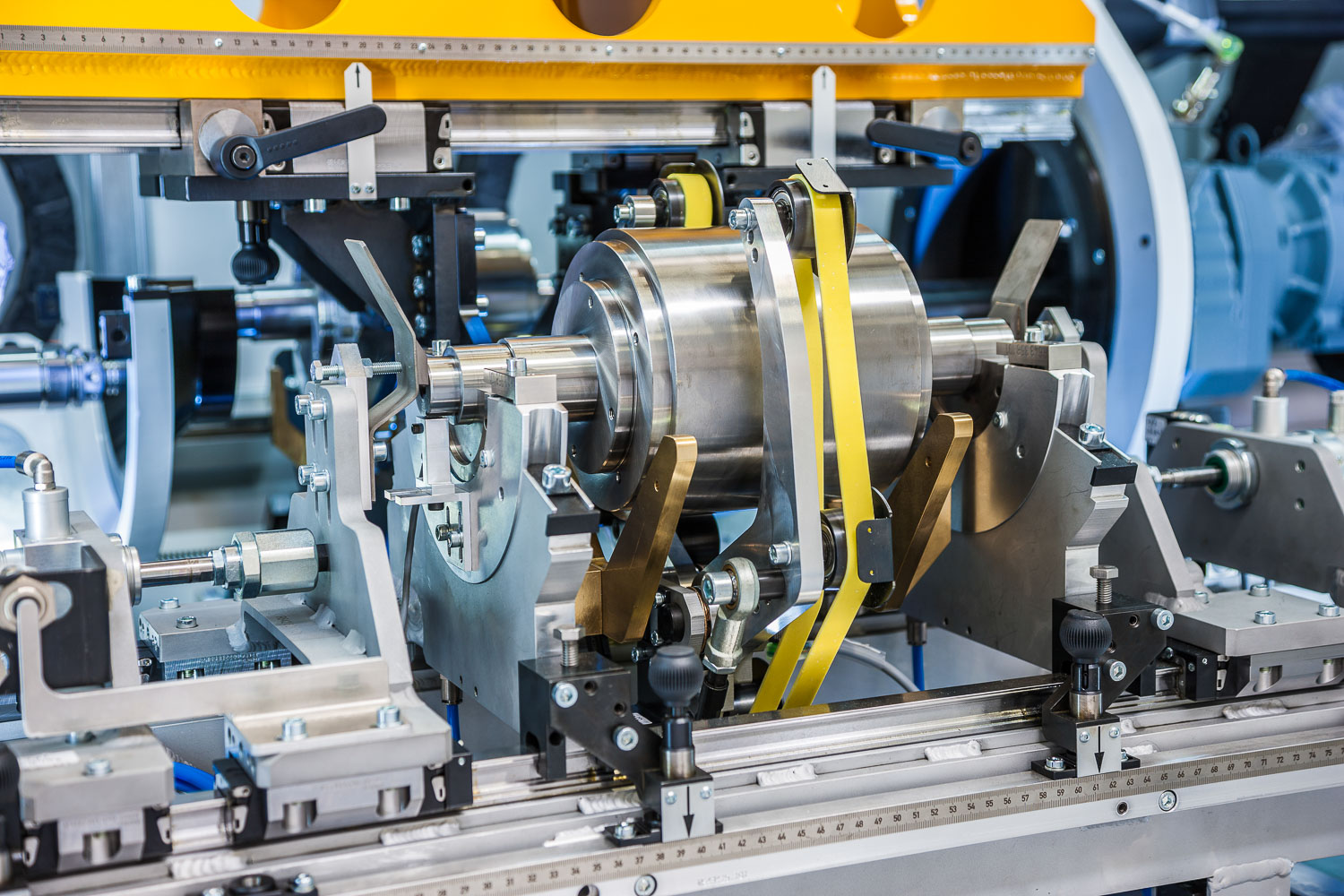

The high flexibility of the eTENO also comes into play when changing to another rotor. Good accessibility, simple and intelligent design of the controls, linear units with setting positions for quick and precise location retrieval support of the correction process and increase the efficiency of the production process.
State of the Art Measuring and controlling
Our current measuring and control unit CAB950 in the SmartTouch version is designed as an intuitive and self-explanatory human-machine interface (MMS). It allows a comfortable and clear access to all functions of the machine.
In addition to precise mechanics, CAB measurement technology guarantees the highest precision in balancing unbalance. Many off-the-shelf features optimize accuracy when balancing eDrives. The CAB950 is ready for linking into the digital world. It offers all options from the service app to production monitoring, our modern measuring and control technology.
Modular machine concept
All stations can be flexibly integrated into various assembly lines or operated in their own protective shroud, as a standalone unit.
Data at a Glance | ||
Rotor dimension | ||
Rotortyp | Journals on both sides | |
Rotor weight | [kg] | 2,5 - 50 |
Overall length | [mm] | 150 - 500 |
Journal diameter | [mm] | 15 - 60 |
Rotordiameter | [mm] | 60-200 |
Machine data | ||
width | [mm] | 3300 |
depth | [mm] | 2800 |
height | [mm] | 3000 |
Total weight | [kg] | 5000 |
Air pressure | [bar] | min. 5,5 |
Lubrication | Long-term of lifetime lubrication | |
Noise level as per EN ISO 3744 (ISO4871) | [dB(A)] | max. 75 |
Technical availability | 99% nach VDI 3423 | |
Supply | ||
Operating voltage as per IEC 38 | [mm] | 400 V ± 10 %, 50 Hz ± 2 %, 3 Ph |
Input power | [kW] | 34 |
Max. back-up fuse by customer | [A] | 25 |
Control voltage | 24 V DC | |
Internal device voltage | 230 V AC | |
Average cycle time per workpiece at 100 % availability (two planes in one step) approx. 40-100 sec. |
