Automatic 2-station balancing machine for passenger car crankshafts Bario - Schenck Nederland

  • Flexible machine design
  • Fast change over
  • Ergonomic operation and easy maintenance
  • Reduced floor space requirements
  • Reduced energy consumption
  • Highest measuring accuracy
  • Improved productivity

Range of application

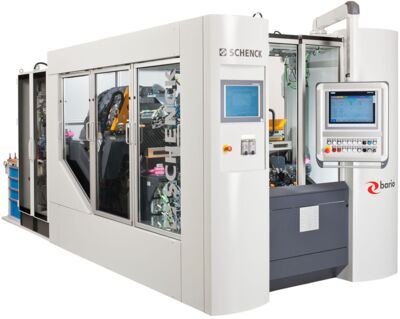

The BARIO is a fully automatic and flexible 2-station balancing machine for the series production of symmetrical and non-symmetrical passenger crankshafts.
The precision balancing unit can be used for the balancing of non-symmetrical crankshafts without the use of bob weights. Automatic unbalance correction is achieved by drilling, and uses minimal quantity lubrication (MQL).

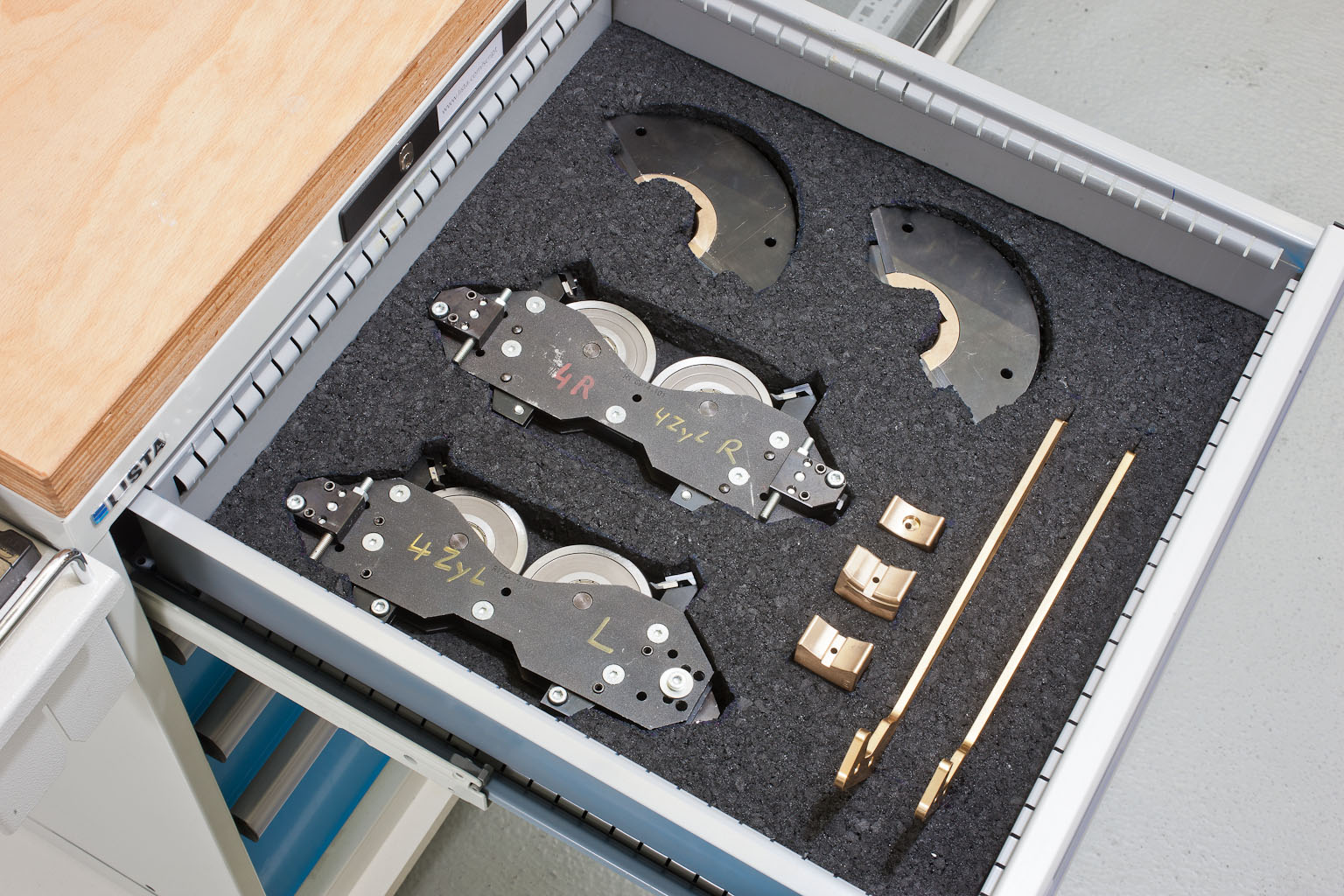

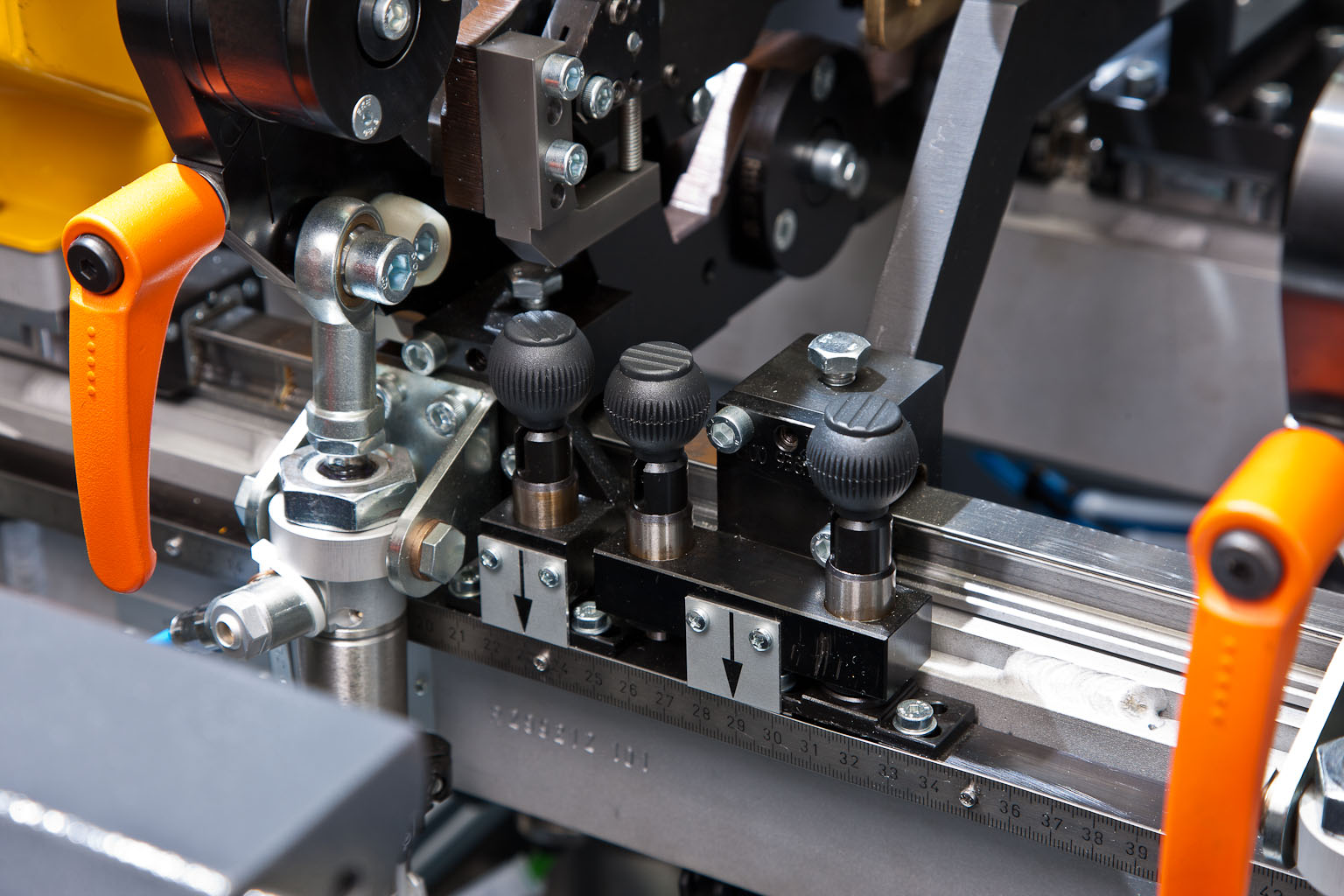

Change over between different crankshaft types is very simple and fast. The machine is therefore ideally suited for the cycle time, flexibility, and quality requirements of the automotive industry.

Design

Design

  • 2-Station-balancing machine
  • Direct hook design for efficient installation
  • Modular balancing unit

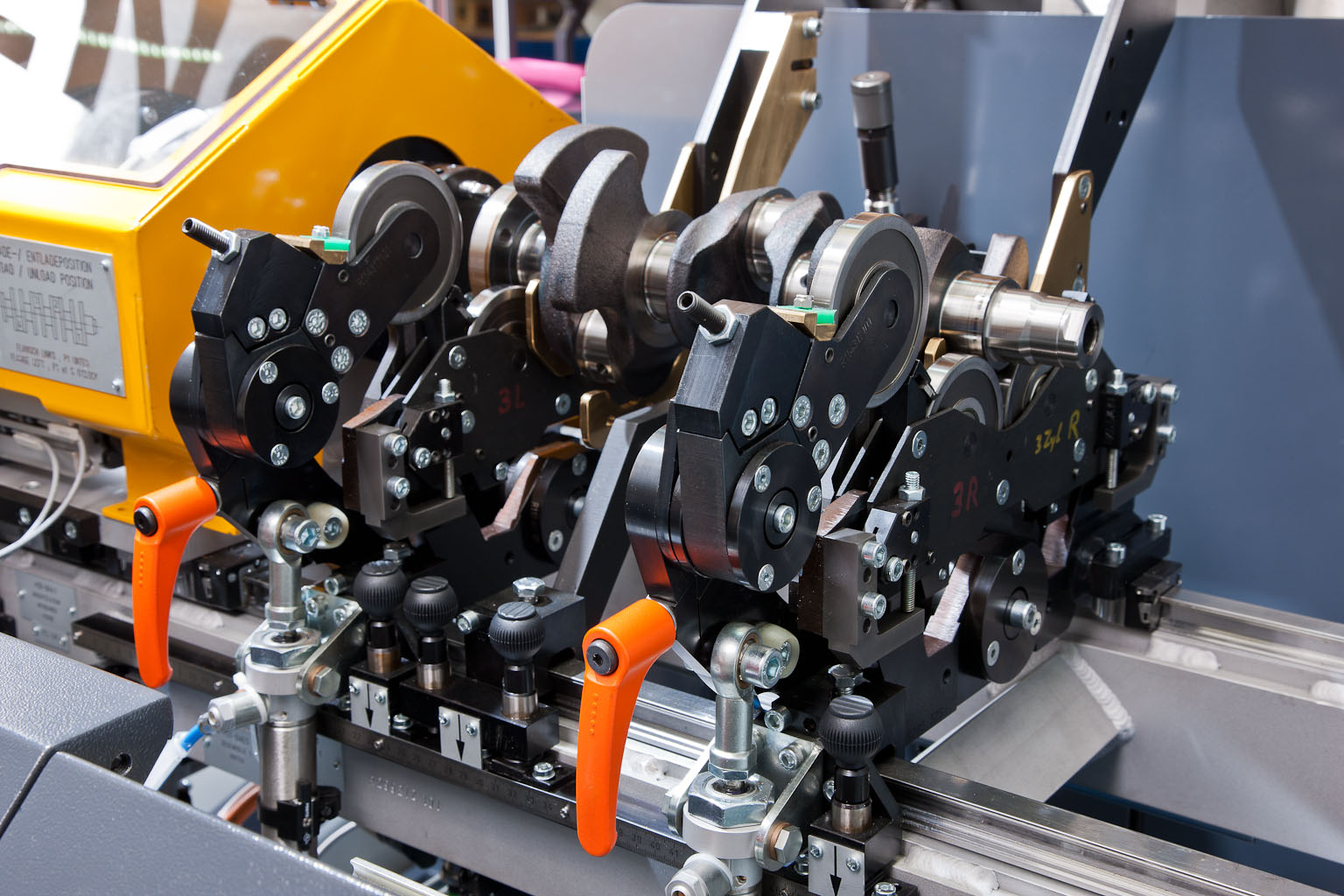

    - End drive or pin drive balancing unit for symmetrical  and non-symmetrical crankshafts
    - Roller drive balancing unit for symmetrical crankshafts

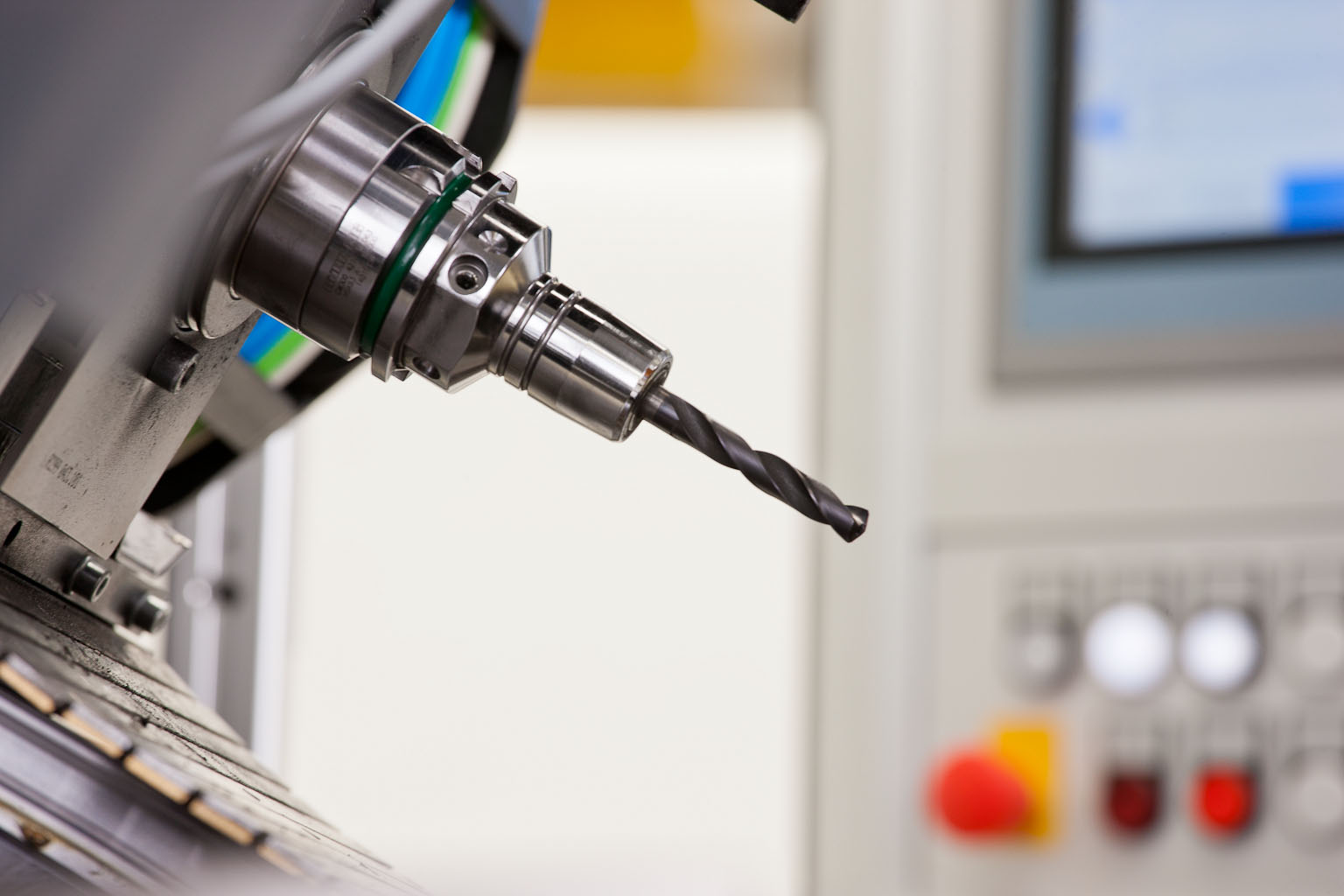

  • Drilling with minimal quantity Lubrication (MQL)
  • Standard Internal rotary transport unit

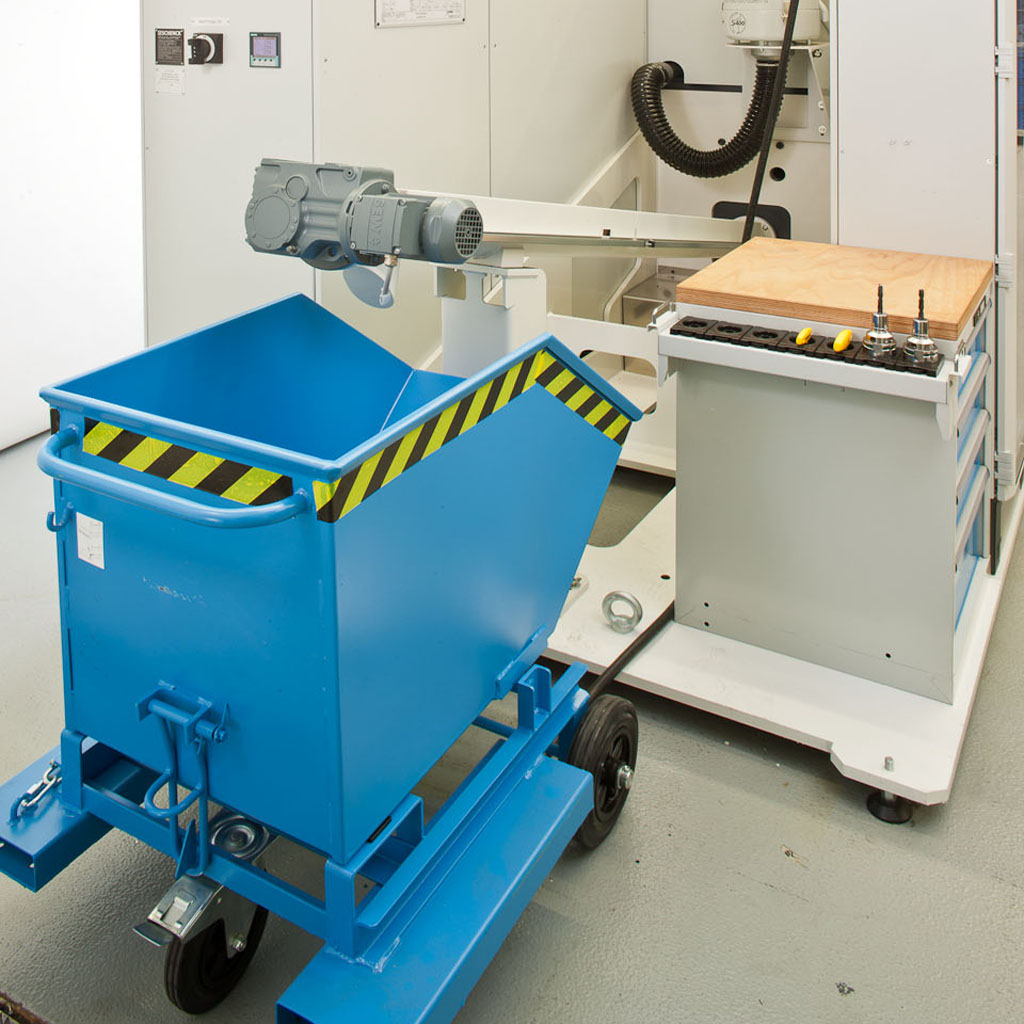

  • Integrated chip transport
  • fluidics ergonomically arranged in a cabinet enclosure

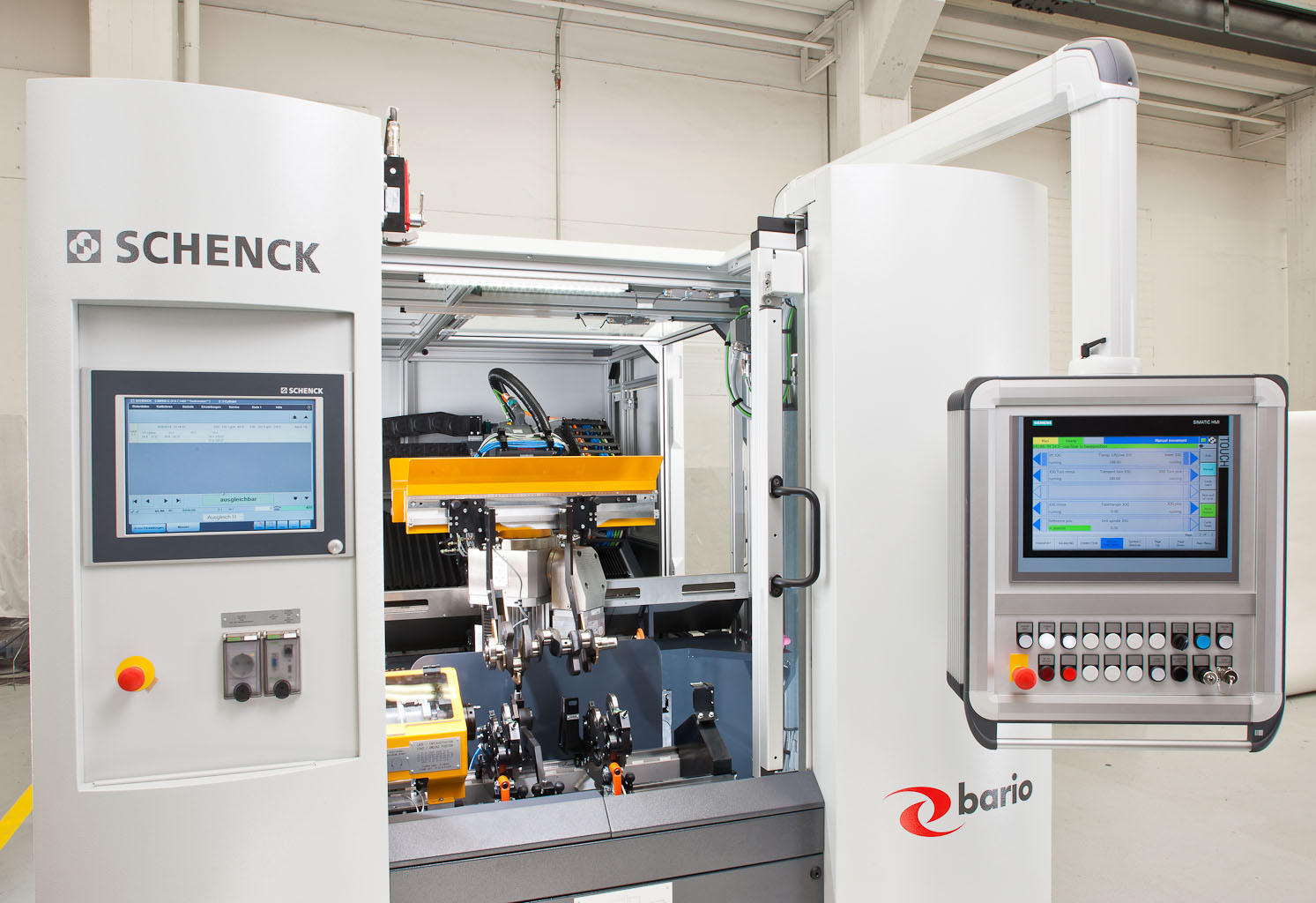

  • Measuring unit CAB950 with Smart Touch Screen

Special features

  • Measuring unit CAB950 with Smart Touch Screen
  • SCHENCK diagnostic function "Fingerprint"
  • Mass-optimized polar correction with SCHENCK optimized algorithms
  • optimized chip shedding - no chip suction needed

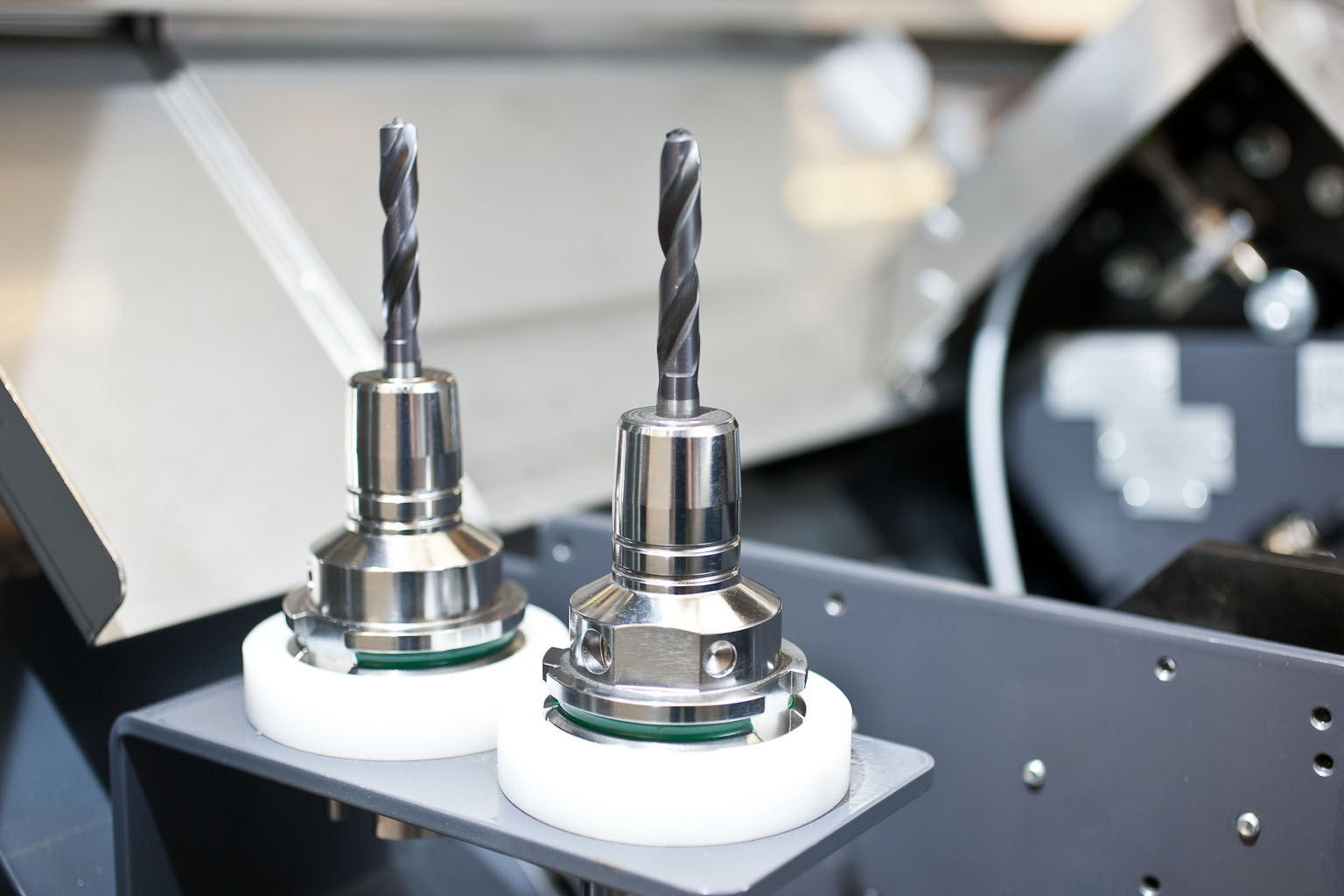

  • Tool changer (option)
Technical data
Data at a glance

Rotor
Crankshafts    Symmetric crankshafts like I4, I6
    Non-symmetric crankshafts like I2, I3, I5, V6, V8
Weight max.  [kg]  30
Total length max.  [mm]  650
Main journal diameter  [mm]  40 - 70
Distance axial center to drive end  [mm]  100 - 240
Correction planes distance  [mm]  200 - 600
Main journal distance  [mm]  (120) 170 - 500
Rotating outside diameter max.  [mm]  200


Maschine
Width  [mm]  ca. 2060
Depth  [mm]  ca. 5500
Height  [mm]  ca. 2200
Total weight  [kg]  10.000
Painting    According to customer requirements

Balancing unit    Pin drive or end drive
Crankshaft support    Rollers
Measurement uncertainty  [gmm]  5 - 25

Measuring device    CAB 950C with Touch Screen

Basic machine  Order No.  R0300300.01
Options
Tool Exchanger  Order No.  R0300201.01
Rotary transport with flexible design  Order No.  R0300202.01
Automatic hatch  Order No.  R0300204.01
