Balancing Machines for Automotive Wheels 420 RBLR - Schenck Nederland

  • Modular machine design, optimally adapted to the job location
  • Semi or fully automatic sequence, flexible application through optional mixed-mode operation, short cycle times
  • Unbalance correction independent of the correction weight form; knock-on, clipmounted or self-adhesive are possible

Sequence of operations

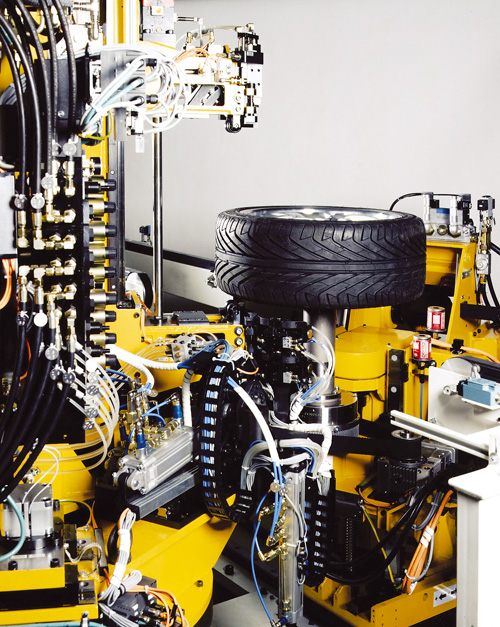

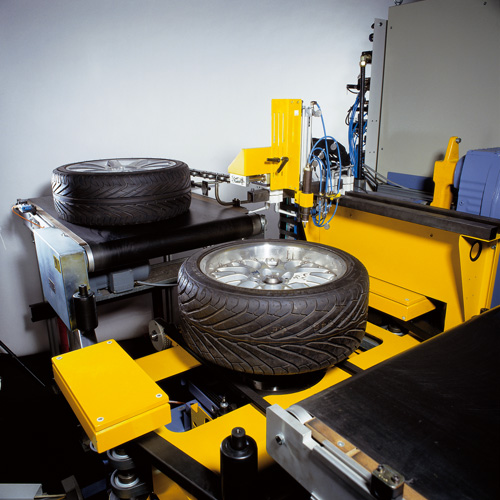

  • Feed the wheel into the measuring station, center by the outside diameter, lower the wheel onto the balancing unit and clamp.
  • Measuring run to determine the unbalance amounts and angles, index the wheel and mark the correction angles.
  • Unclamp, lift and advance the wheel to the correction station.

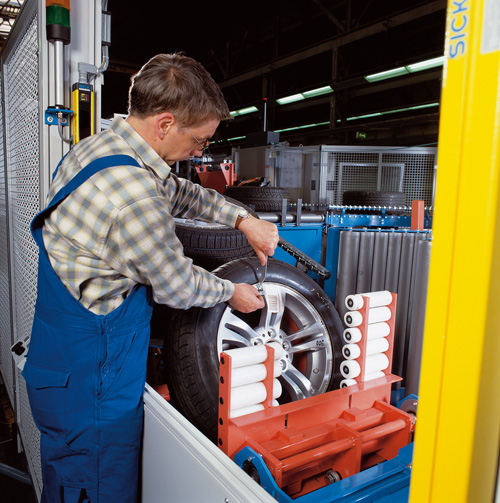

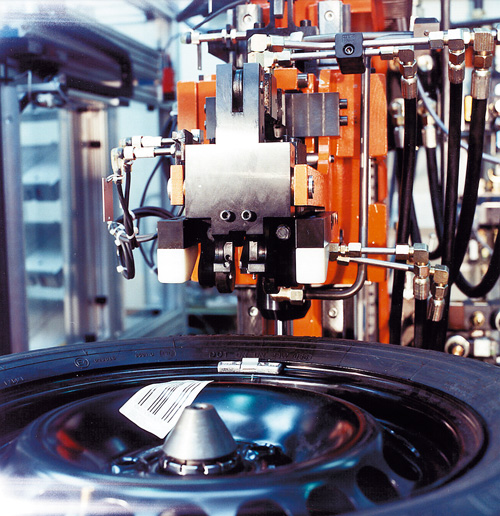

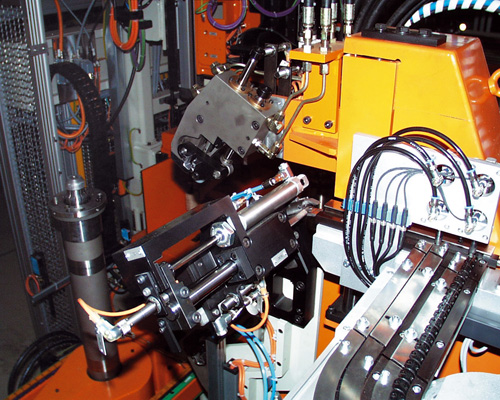

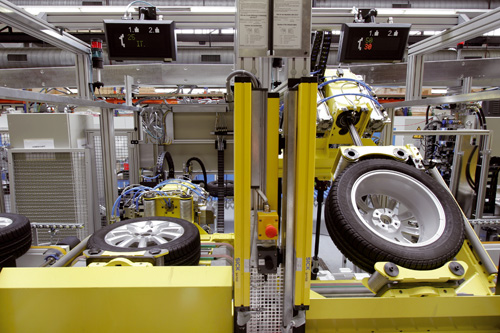

  • Depending on the correction method in the correction station(s), knock-on, self-adhesive, clip-on weights or clamps can be attached manually or automatically. Sometimes the wheel is rotated to facilitate correction in the lower plane.

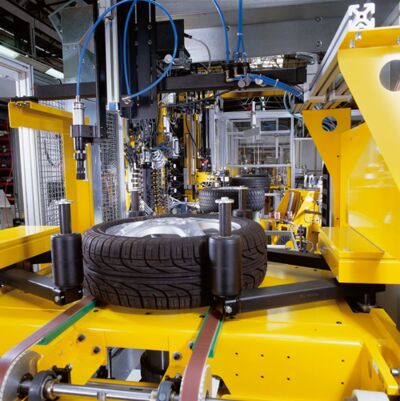

  • Move the wheel out of the machine and transfer it to the following station.
Ontwerp

Range of application

Measurement and correction of unbalance in two planes in automotive wheel and tire sets. Processing of steel and/or light metal alloy rims of various dimensions and tire mounting. Unbalance correction by classified lead weights with integrated or separate clip or graded self-adhesive weights. Use in production environment in mixed operation. With the appropriate conveying system, the machine can be linked with other lines: valve insertion, tire-mounting, inflation and matching, tire stabilization, additional residual unbalance checking, final assembly.

Design

Machine design for modular, building-block approach. Number of stations dependent on the function and required production rate.

Expandable from a manual, single-station machine to a transfer machine with automatic operating sequence. Loading and unloading either by operator or automatically. Simple handling, easy change over and fast faultfinding through modular concept.

Measured data processing by microprocessor based measuring unit CAB 850 with software package for calculating the optimum correction, statistics, self-test, etc.

Integrated unbalance correction change over from manual knock-on to automatic adhesion of correction weights.
Technische data
Technical data at a glance    420 RBLR/K   420 RBLR/P  424 RBLR/P  425 RBLR/P  426 RBLR/P  427 RBLR/P  428 RBLR/P  430 RBLR/P
Measuring unit    CAB 950  CAB 950  CAB 950  CAB 950  CAB 950  CAB 950  CAB 950  CAB 950
Checking machine    •  -
Production machine      •  •  •  •  •  •  •
Number of operators    -   -  1  1 - 2  1 - 2  1 - 2  1   1
Number of correction stations    -   -  1  2  2  2  1   1
Correction station, skip
Correction station, tire rotation        •  •  •  •  •  •
Uprighting station          •  -  •  •  -
Indexing station          •  -  •  •  -
Adhessive weight application/ clip insertion station        -  -  -  -  •  •
Marking station        -  -  •  •  -  -
Complete wheel
Weight, max.  [kg]  50  50  50  50  50  50   50  50
Total width  [mm]  145 - 360  145 - 360  145 - 280  145 - 360  145 - 360  145 - 360   145 - 300  140 - 300
Outside diameter, tire  [mm]  560 - 900  560 - 900  560 - 900  560 - 900  560 - 900  560 - 900   560 - 900  560 - 900
Profile size   [mm]  15 - 120  15 - 120  15 - 120  15 - 120  115 - 120  15 - 120   15 - 120  15 - 120
Rim diameter  [Zoll]  13 - 22  13 - 22  13 - 22  13 - 22  13 - 22  13 - 22   13 - 22  13 - 22
Bead width  [Zoll]  4,5 - 12,0  4,5 - 12,0  4,5 - 12,0  4,5 - 12,0  4,5 - 12,0  4,5 - 12,0   4,5 - 12,0  4,5 -12,0
Centering diameter  [mm]  57  57  57  57  57  57   57  57
Machine
Width A 2)  [mm]  1690   1690  5500  6000  6500  6500  7000  7000
Depth B 2)  [mm]  3330   3330  4000  5000  5000  5000  6000  6000
Height C 2)  [mm]  2270   2270  2400  2400  2400  2400  2400  2400
Support dimension  [mm]  220  220  220  220  220  220   220  220
Balancing speed  [min -1]  300  300  300  300  300  300   300  300
Measurement uncertainty 4)  [g]  0,5  0,5  0,5  0,5  0,5  0,5   0,5  0,5
Achievable tolerance 5)  [g]  7  7  7  7  7  7  7  7
Cycle time 1)  [s]  10   10  10 - 22  10 - 14  10 - 15  10 - 17  10 - 17  12
Production 1)  [St./h]  400   360  160 - 280  255 - 360  240 - 360  210 - 360  210 - 360  300
Air pressure  [kPa]  600  600  600  600  600  600   600  600
Air consumption  [m3/h]  5  5  60  60  60  60  60  60
Power consumption  [kVA]  10  10  30  30  30  30  30  30

Basic machine  Order No.  R0420900.01  R0420200.01  R0420400.01  R0420500.01  R0420600.01  R0420700.01  R0420800.01  R0420900.01
Options
Wheel turning device  Order No.  -   R0420301.01  -  -  -  -  -  -
Swivelling skip for adhesion rim  Order No.  -   R0420302.01  -  -  -  -  -  -
2nd correction skip - distributor conveyor  Order No.  -   R0420303.01  -  -  -  -  -  -
2nd correction station  Order No.  -   R0420304.01  -  -  -  -  -  -
Further weight bins  Order No.  -   R0420305.01  R0420405.01  R0420505.01  R0420605.01  R0420705.01  R0420805.01  R0420905.01
False extraction  Order No.  -   R0420306.01  R0420406.01  R0420506.01  R0420606.01  R0420706.01  R0420806.01  R0420906.01
3rd marker  Order No.  -   R0420307.01  R0420407.01  R0420507.01  R0420607.01  R0420707.01  R0420807.01  R0420907.01
Wheel identification station 3)  Order No.  R0420909.01  R0420208.01  R0420408.01  R0420508.01  R0420608.01  R0420708.01  R0420808.01  R0420908.01
Barcode reader   Order No.  R0420909.01  R0420209.01  R0420409.01  R0420509.01  R0420609.01  R0420709.01  R0420809.01   R0420909.01
Axial/radial run-out measurement  Order No.  R0420910.01  R0420210.01  R0420410.01  R0420510.01  R0420610.01  R0420710.01  R0420810.01   R0420910.01
Wheel adapters  Order No.  o.r.  o.r.  o.r.  o.r.  o.r.  o.r.  o.r.  o.r.

1) Dependent on correction method and operator, geometry measuring instrument      o.r. On request
2) Data non-binding, dependent on the respective equipment
3) Transfer of tire and rim data to the plant
4) Including clamping/unclamping
5) Depending on the quality of the rims and operator skill
