Modular Mass Correction System for Universal Balancing Machines MAK-BA, MAK-BV - Schenck Nederland

  • Time-savings due to correction in the machine
  • Universal application range through modular design and infinite setup possibilities
  • Simple handling and minimum space requirement
  • Manual basic version or optional semi-automation

Modular design

MAK is constructed in modular fashion with many setup options. It can be combined for optimum adaptability to the most diverse rotor types and machine sizes. Further modules can be added at any time.
Ontwerp

A complete range of possibilities

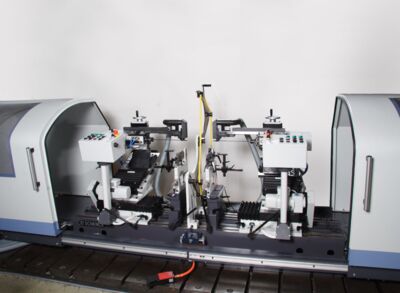

Are you thinking of unbalance correction on a universal balancing machine with a horizontal axis?
Now use the MAK system on new machines or as an upgrade to an existing balancing system.
Used in maintenance, repair and overhaul, in one-off and series production of rotating work-pieces as well as complete assemblies.

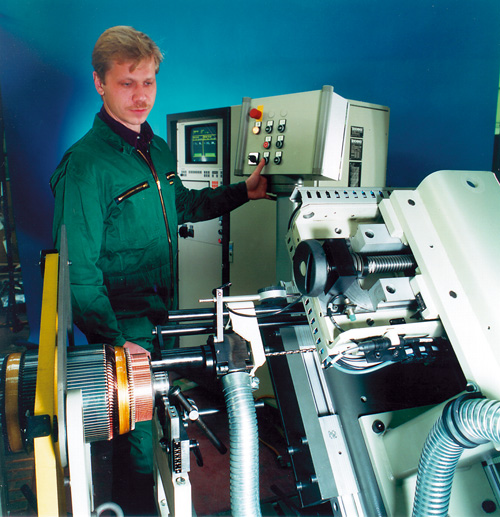

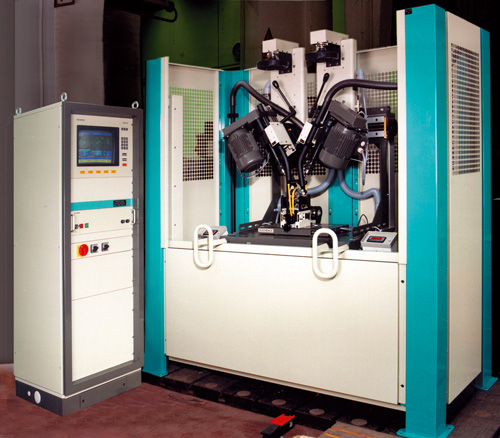

MAK permits direct unbalance correction by drilling at suitable locations on the rotor (material removal) or machining holes for attaching correction weights (weight addition).
  • Axial drilling in the end face

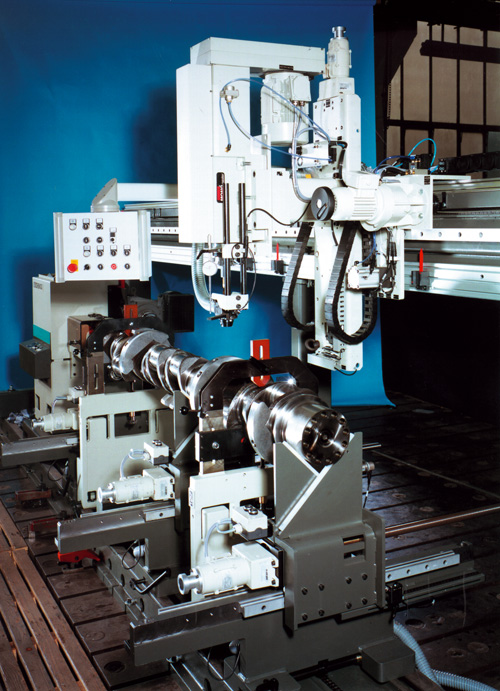

  • Radial drilling on the outside radius
Technische data
Technical data at a glance    MAK10BV  MAK10BV  MAK15BV  MAK18BV  MAK25BV  MAK10BA  MAK10BA  MAK15BA  MAK18BA  MAK25BA
Drilling radial    •  •  •  •  •
Drilling, axial              •  •  •  •  •
Manual feed    •    •      •    •
Automatic feed      •    •  •    •    •  •
Mass correction system
Machine height   [mm]  180  630 / 800 / 1050  630 / 800 / 1050  630 / 800 / 1050  630 / 800 / 1050   180  630 / 800 / 1050  630 / 800 / 1050  630 / 800 / 1050  630 / 800 / 1050
Portal slide, travel  [mm]  4)  4)  4)  4)  4)  -  -  -  -  -
Radial slide, stroke   [mm]  -  -  -  -  -  100  400 / 800 / 1200  400 / 800 / 1200  400 / 800 / 1200  400 / 800 / 1200
Advance slide, stroke   [mm]  160 / 320  400 / 630 / 800  400 / 630 / 800  400 / 630 / 800  400 / 630 / 800   40  400 / 630 / 800  400 / 630 / 800  400 / 630 / 800  400 / 630 / 800
Correction radius   [mm]  180  350   350   350   350  95  350 / 750 / 1150  350 / 750 / 1150  350 / 750 / 1150  350 / 750 / 1150
Drill capacity 1)   [mm]  10  10  15  18  25  10  10  15  18  25
Drill depth max. 3)   [mm]  40  75  75  80  60  40  75  75  80  60
Spindle connection cone  B12  SE25  MK3  ISO30  ISO40  B12  SE25  MK3  ISO30  ISO40
Clamping collet, inter-mandrel  -  ER25  MK3  MK3  MK3  -  ER25  MK3  MK3  MK3
Feed force 2)   [N]  -  1450  -  2850  8200  -  1450  -  2850  8200

Basic unit  Order No.  R0820100.01  R0820200.01  R0820300.01  R0820400.01  R0820500.01  R0820600.01  R0820700.01  R0820800.01  R0820900.01  R0821000.01
Options
Chip extractor  Order No.  R0820101.01  R0820101.01  R0820101.01  R0820101.01  R0820101.01  R0820101.01  R0820101.01  R0820101.01  R0820101.01  R0820101.01

1) in steel ST50
2) At 600 kPa
3) Dependent on drill depth display
4) Determined by bed length
Other applications on request
