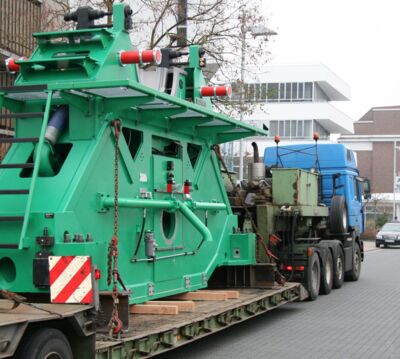

Relocation of balancing equipment

Everything from a single source – a removal service by the expert:
  • Preliminary check of the machine(s) with a corresponding report (if required)
  • Dismantling, transport, reassembly and certified re-commissioning
  • Preparation and modernisation of the machine (if required)
  • Handling of your balancing work during the removal
  • Checklist on the relocation as documentation
  • Test certificate on the re-commissioning of the machine
A balancing machine or diagnostic system is the intelligent combination of perfect mechanics, precision electronics and functional software. You need someone who knows your machine inside out, if you want to have it relocated quickly, expertly and cost-effectively.

Schenck RoTec service experts know all the fine points of balancing and diagnostics “inside out“, figuratively speaking. Practical knowledge and experience, information and regular further training are a matter of course for our service technicians.
Ontwerp
We are the experts when it comes to relocating your balancing machine! Our international service team will assist you in the proper relocation of your machines – wherever the destination. Whether from A to B at an existing location, or from one location to another, with every service from a single source.

Our removal service covers all types of balancing machines – manual and automated – as well as assembly lines and other machines.


Technische data
Technical data at a glance
Measuring unit    CAB 759
Color touch screen    •
Combined measuring / correction station    •
Manual loading    •
Automatic cycle    •
Automatic load/unload door    •
Clamp tool actuation unit (push-to-unlock)    •
Horizontal and vertical drilling    •
Spindle drive system    servo
Drill feed    servo
Drill speed    FC
Changeover     manual

Rotor
Weight, max. 2)  [kg]  30
Diameter, max.  [mm]  500
Brake disc height, max.  [mm]  150
Machine
Width A 4)  [mm]  1200
Depth B 4)  [mm]  2700
Height C 4)  [mm]  1800
Balancing speed  [min -1]  600-1000
Measuring uncertainty 1)  [gmm]
Air pressure  [kPa]  600
Supply power  [V-Hz]  3x400-50/60
Power consumption  [kVA]  10
Color  RAL7035 (light grey) and  RAL7024 (graphite grey)

Options
Interface for auto load/unload
Vacuum unit

1) Acc. To DIN 1319, 95% probability, work-piece dependent
2) Rotor plus adapter
