Moment Weighing Scales for Jet-Engine Blades Series WM - Schenck Nederland

  • Precision measurement of jet-engine blade moments
  • Simple balancing of bladed rotors

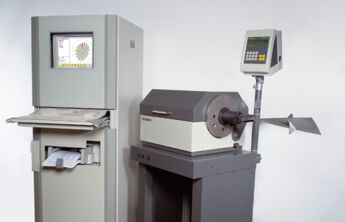

  • Single-axis type for narrow blades and bi-axial type for wide chord fan blades
  • Optional software for optimized blade distribution

Design

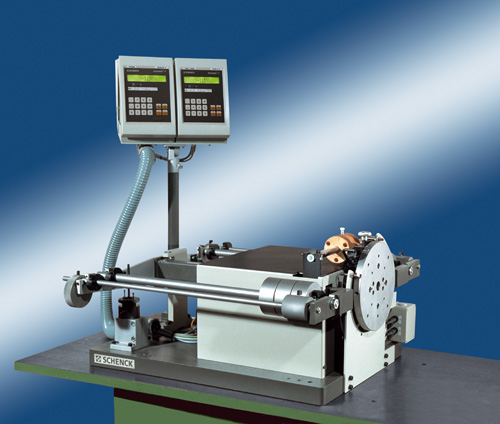

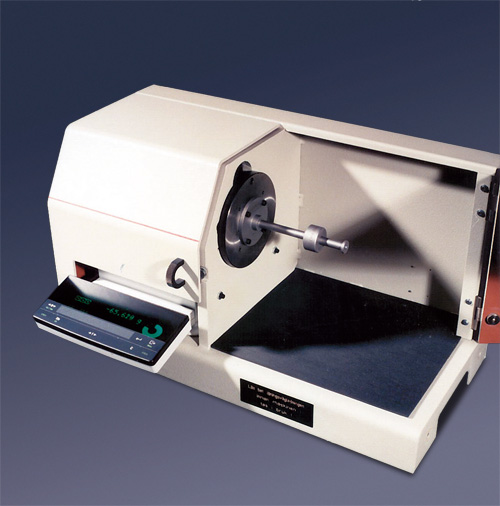

Electronic scale on a base plate with built-in levelling device.

Weigh-beam mounted on knifeedges for friction-free operation, including oil damping, measuring system with load-cell and microprocessor-controlled measuring unit (digital display), thus, ensuring high weighing accuracy and repeatability. An adapter flange is provided for mounting the blade adapter.

Single-axis or dual-axis types according to the application and blade form.
Ontwerp

Range of application

Determining the radial, axial and tangential moments of jet-engine blades for evaluation of mass and position of center of gravity.

Application of the scale in testing, inspection and quality control.

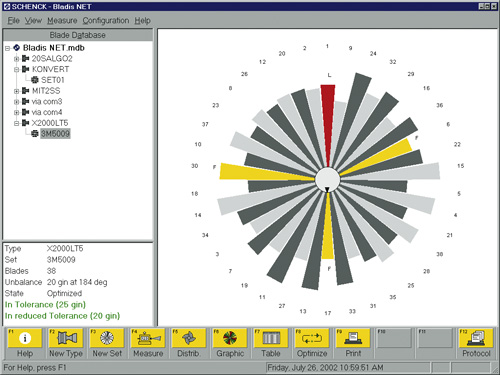

With the use of the optional BLADIS Net blade-distribution system, the exact position of the blade in the assembly can be determined.
Technische data
Technical data at a glance    WM 02  WM 01  WM 00  WM 0  WM 1  WM 2  WM 0 BA  WM 1 BA  WM 2 BA
Measuring unit    Digital  Digital  Digital  Digital  Digital  Digital  Digital  Digital  Digital
Single-axis measurement    •  •  •  •  •  •
Triple-axis measurement              •  •  •
Jet-engine blade
Weight  [kg]  0,1  0,3  1  3  10  30  3  10  20
Radial moment  [kgm]  0,02  0,1  0,5  2  10  40  2  10  30
Tangential moment  [kgm]  -  -  -  -  -  -  0,25  1,25  2,5
Axial moment  [kgm]  -  -  -  -  -  -  0,25  1,25  2,5
Root radius, min. 1)  [mm]  30  30  80  80  125  275  100  165  200
Machine
Width A 3)  [mm]  1000  1000  1200  1200  1500  2000  800  1500  1500
Depth B 3)  [mm]  800  800  1000  1000  1200  1500  800  1000  1000
Height C 3)  [mm]  300  300  500  500  600  800  600  1000  1000
Flange radius 1)  (mm)  30  30  80  80  125  275  100  165  200
Sensitivity  (gmm)  0,1  1  10  20  100  1000  20  100  500
Power requirement  [V]  230  230  230  230  230  230  230  230  230

Basic machine  Order No.  R0710100.01  R0710200.01  R0710300.01  R0710400.01  R0710500.01  R0710600.01  R0710700.01  R0710800.01  R0710900.01
Options
BLADIS Net 2)  Order No.  R0710101.01  R0710101.01  R0710101.01  R0710101.01  R0710101.01  R0710101.01  -  -  -
BLADIS 3D 2)  Order No.  -  -  -  -  -  -  R0710201.01  R0710201.01  R0710201.01
Revolving flange  Order No.  -  -  -  -  -  -  -  R0710802.01  R0710902.01
Calibration Master  Order No.  R0710103.01  R0710203.01  R0710303.01  R0710403.01  R0710503.01  R0710603.01  R0710703.01  R0710803.01  R0710903.01

1) Distance from axis of rotation to blade root
2) Blade distribution system (software and hardware)
3) Data non-binding, dependent on the respective equipment
