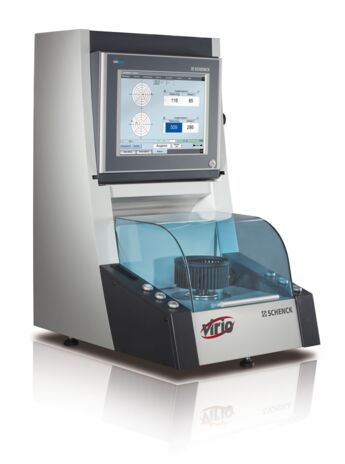

Vertical Balancing Machine for rotors up to 500 g Virio 05 - Schenck Nederland

  • Precise unbalance measurement also for small, light rotors
  • Balancing in one or two planes
  • No time-consuming calibration runs through permanent calibration
  • Compact machine design, small space requirement and simple assembly
  • PC measuring unit with extensive operator prompting and direct display of unbalance or correction weight

Range of application

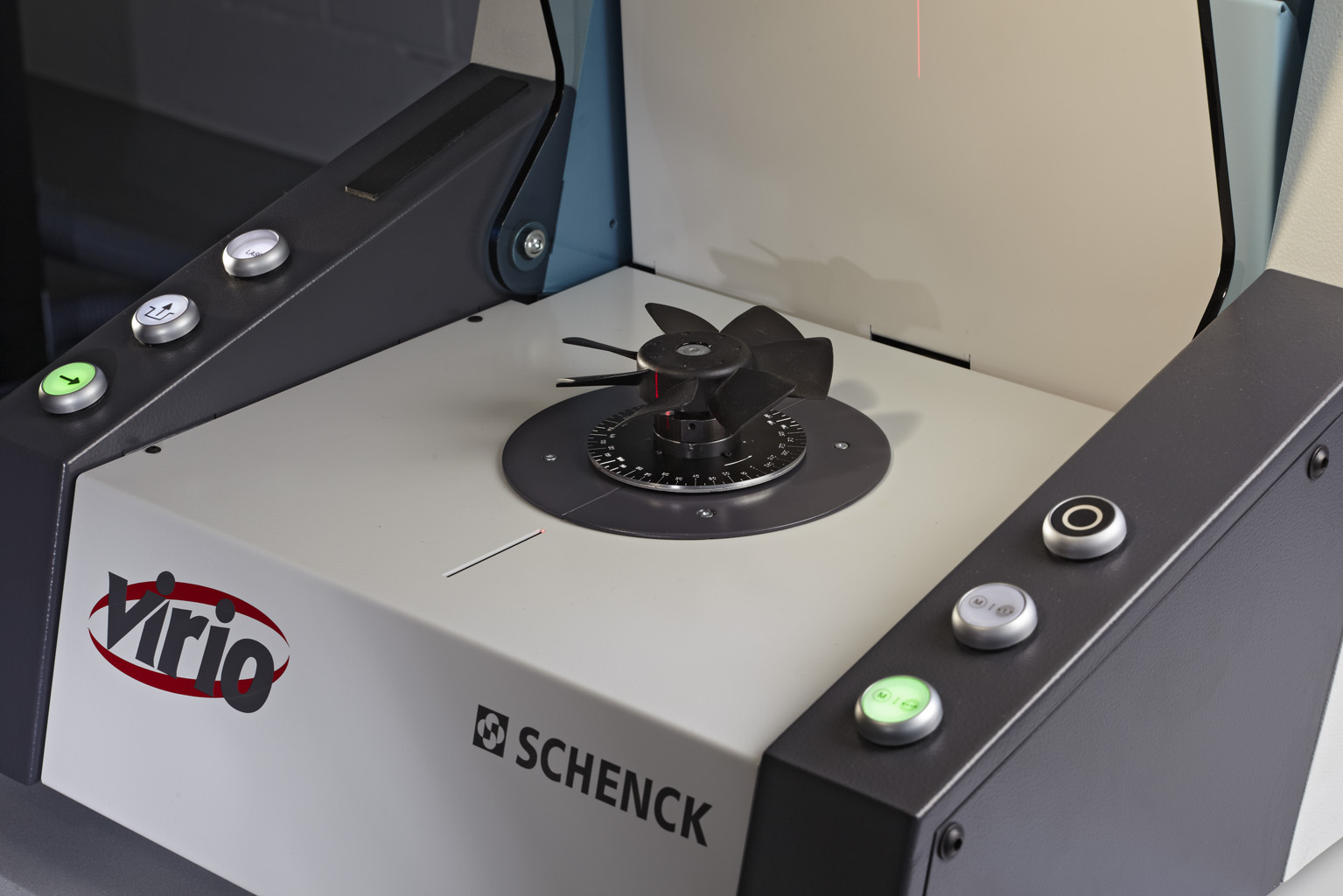

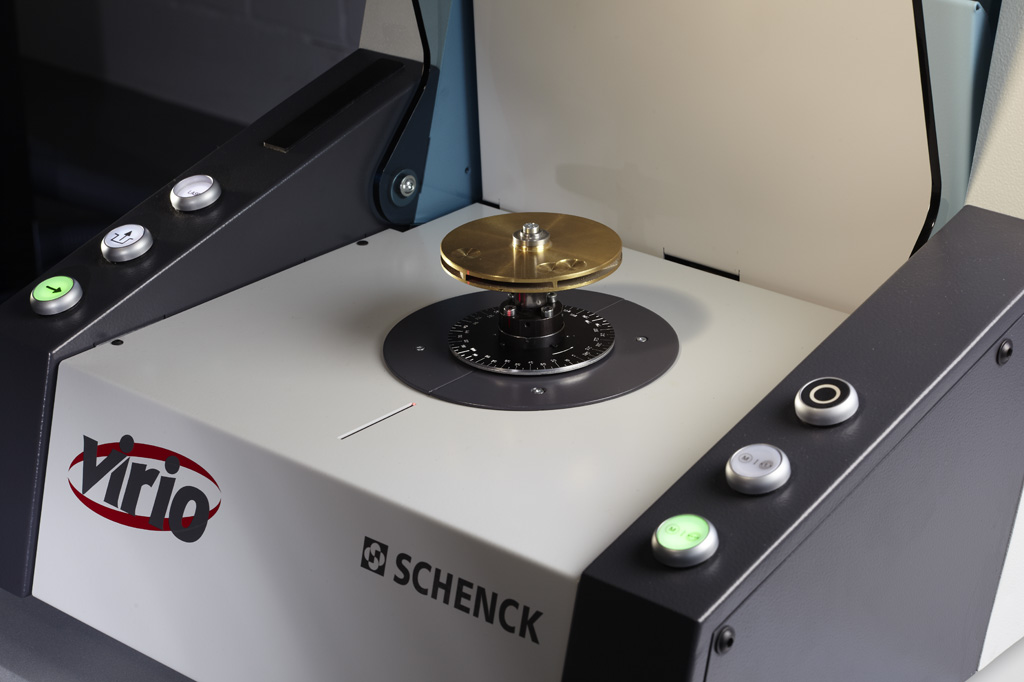

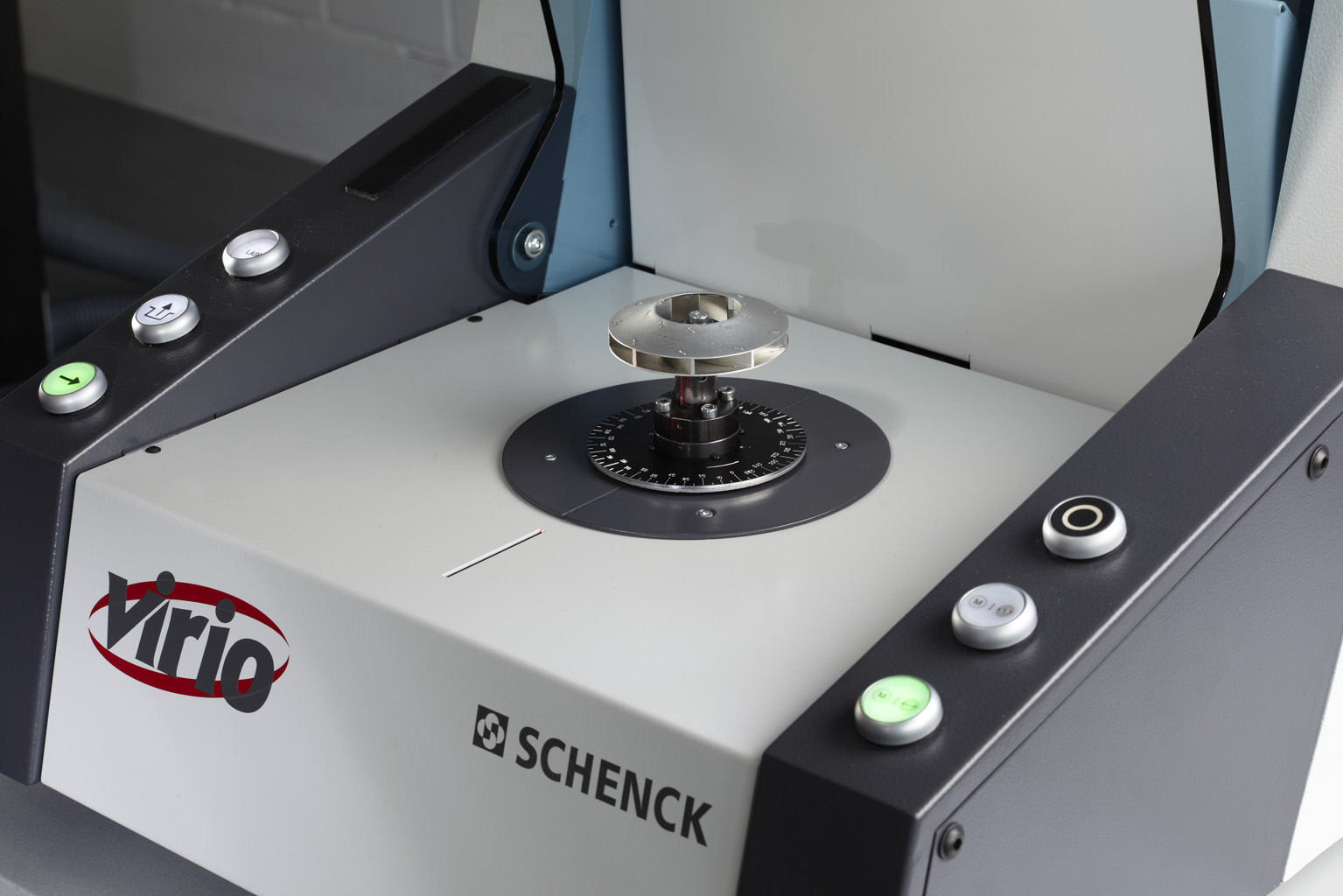

Measurement and correction of unbalance in rotors without their own shaft, in one or two planes.  Typical examples of rotors are blank CDs, small blowers without self-propulsion, centrifuges, deflection pulleys, clutch components and rotating paint spray nozzles. A shorter spindle distance and protective shroud provide faster, safer and more accurate balancing.

Design

  • Force-measuring, vertical balancing machine with permanent calibration and automatic operation
  • Designed for table-top placement, suitable for a seated operator
  • Balancing unit, measuring unit and control cabinet are mounted on a common base plate.
  • The dynamometer-mounted precision balancing spindle supports a removable adapter for centering the rotors and is driven by a flange-mounted electric motor.
  • The protective enclosure designed according to ISO 7475 is part of the standard equipment.
Ontwerp

Working principle

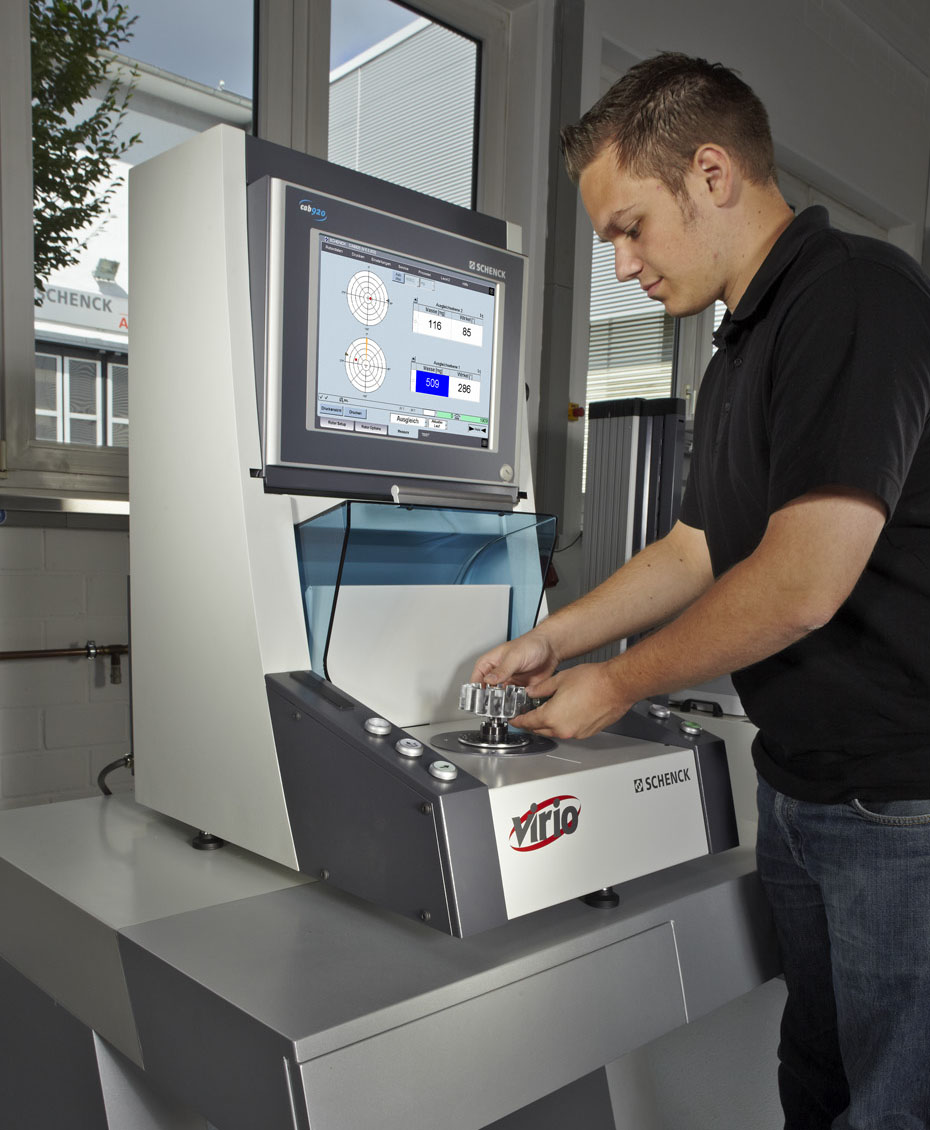

Manually load rotor in the balancing unit, center the work-piece with an interface adapter and close the protective shroud

Start the automatic measuring run. Accelerate, measure and display the unbalance on the measuring unit, automatically index to the correction position. The measured value display is retained after each measuring run.

Open the protective shroud, unload and, if necessary, correct the unbalance.

Check the result of correction (achievement of tolerance is displayed by the measuring unit) and unload the rotor from the balancing unit.

Measuring units

CAB 700 is a compact basic instrument for all standard balancing tasks:
Simple, menu-driven operation, clear display and high accuracy allow perfect balancing of rotors by less experienced operators.

Measuring unit CAB 920 as a high end solution - with regard to operation and versatility, as well as accuracy

Technische data
Technical data at a glance    Virio 05
Rotor
Weight 1), max.  [kg]  0,5
Diameter, max  [mm]  220
Height, max  [mm]  150
Machine
Width A  [mm]  602
Depth B  [mm]  785
Height C  [mm]  925
Balancing speed  [min -1]  1000 - 3000
Measuring uncertainty  [gmm]  0,05 - 0,075
Drive power  [kW]  0,1
Power    240 V, 50 Hz

1) incl. Absorption
