Vertical balancing machine VIRIO10 – VIRIO300 VIRIO - Schenck Nederland

  • Modular construction
  • Short rebuilding times
  • Hugh accuracy
  • Weight range 10 – 300 kg
  • Continuously variable drive unit
  • Ergonomically handling
  • Variable possible applications
  • Protection device C 600 according ISO 7475
  • Mesuring unitt CAB 700 with clearly arranged digital display (optional CAB 920 with vector display and touchscreen)

Design

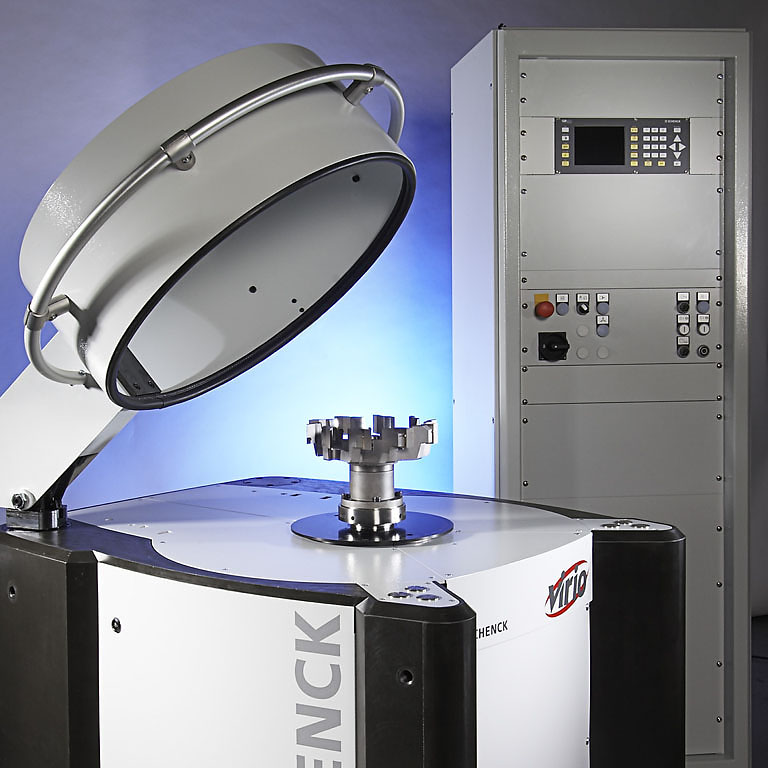

  • Hardbearing, vertical balancing machine in molded mineral design.
  • Measuring unit with permanent calibration and digital signal processing.
  • Measuring unit CAB 700 with coloured, graphics capable LCD-Display. Cache memory for 99 rotor data and extensive basic configuration for the  different correction methods.
  • Optional: CAB 920 with Windows operating system, TFT colour display with touchscreen function and vector view of the unbalance. Designed as network compatible embedded PC with memory card and permanent storage of the measured unbalance values. Simplest  menu navigation in „Easy Mode“.

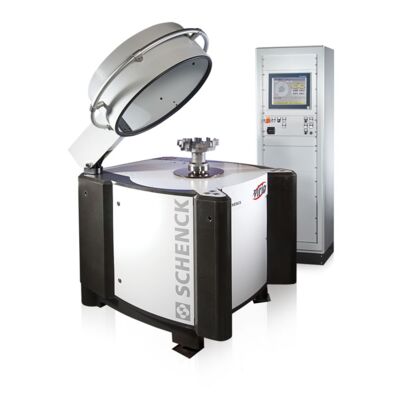

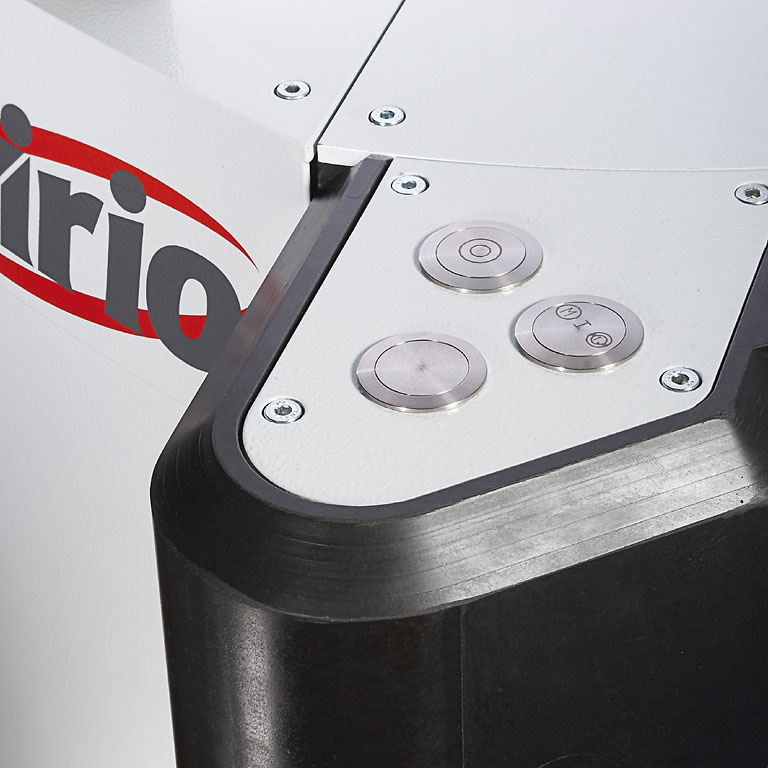

  • The workplace exists essentially of the following components: control cabinet with measuring unit and machine with protection and operating elements

Features

  • The machine is usable without foudation, but with screw connection
  • Short rebuilding times, cause of the hardbearing principle
  • High balancing accuracy
  • Ergonomic design
  • Continuously variable drive units
  • selectable automatic operating sequence with adjustable acceleration and braking times.
  • Extendable with integrated drilling unit
Ontwerp

Scope of application

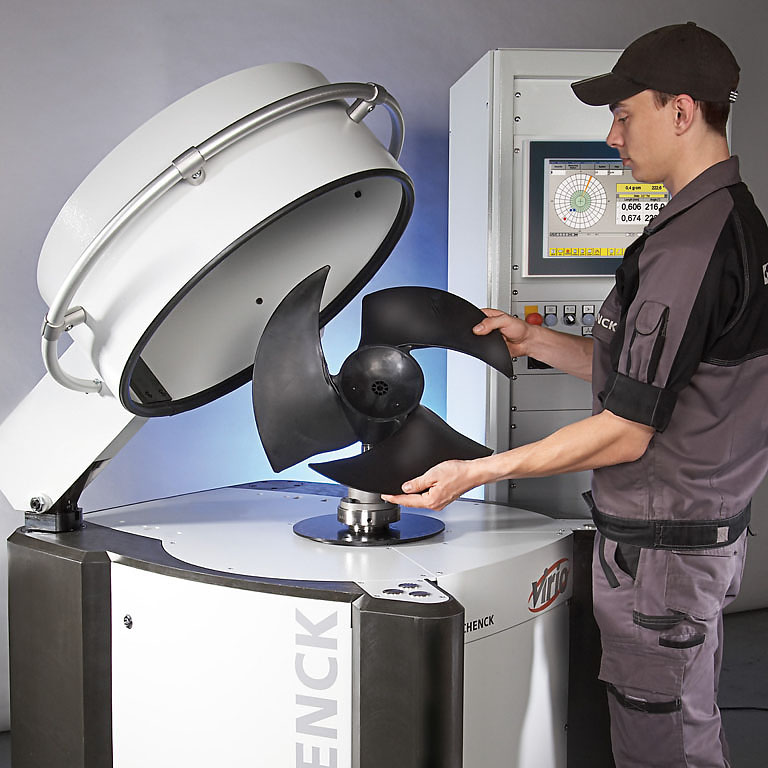

Vertical balancing machines of the type VIRIO10 – VIRIO300 for 1 or 2 planes, are well dedicated for all workpieces without own shafts, like pressure plates, brake discs, brake drums, flanges, housings, clutch parts, blowers, knives, impellers, pullies, saws, grinding discs, flywheels, dampers, turbo charger a.s.o. They are applied in the make-to-order-production and for small series productions. The machines are rated for an upright operation and usable on variously stations.

The rebuilding to different rotor types is practicable within shortest time by changing the adapters. Available are 4 different drive units: 1,5 kW, 2,2 kW, 4,0 kW, or a servo drive for automatic indexing. For the indication of unbalance we provided the polar display, regular or irregular components with integration of forbidden zones. We also provided a milling software for the external correction. The correction data can be sent to the external milling machine via ASCII – interface (CAB 700), or directly (CAB 920).

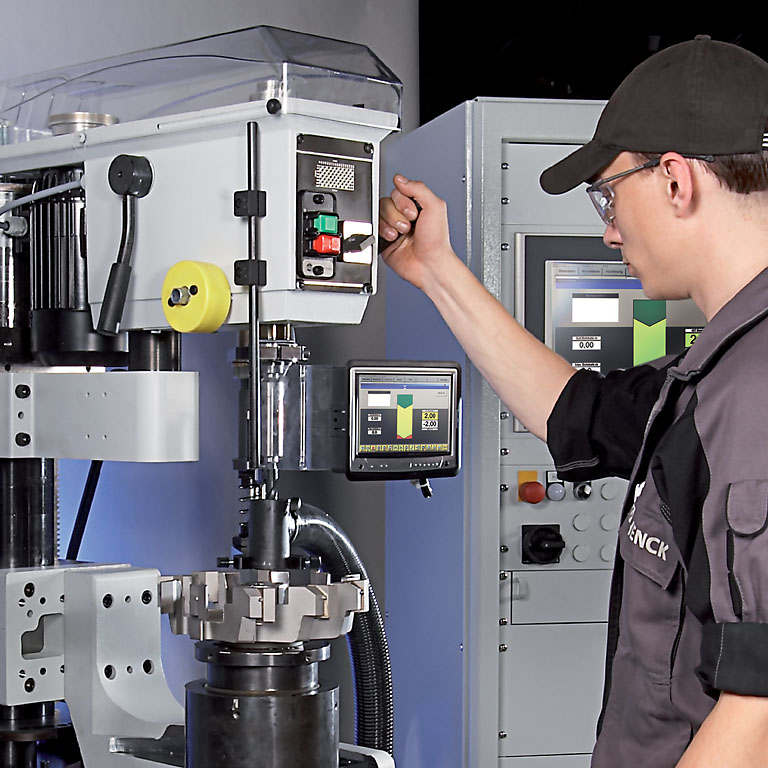

The correction of unbalance can be done directly on the machine by adding weight or by reducing weight, using an integrated drilling unit. The indication of the mass of unbalance to be reduced will be announced by the numbers, angle and depth of holes to be drilled . During the correction a stylized drill shows the proceed.
Optional deliverable are correction units for welding, riveting and grinding.
Technische data
Data at a glance    VIRIO10  VIRIO50   VIRIO100  VIRIO300
Measuring unit    CAB 700  CAB 700  CAB 700  CAB 700
Frequency squirrel drive    1,5 kW  2,2 kW  2,2/4,0 kW  4,0 kW
Servo drive    8 Nm  14 Nm  14 Nm  25 Nm
Rotor
Weight, max.  [kg]  10  50  100  300
Diameter, max. 2)  [mm]  610  810  810  810
Height, max. 2)  [mm]  250  450  450  450
Spindle dimension  [mm]  80H7  80H7  80H7  80H7
Maschine
Width A 1)  [mm]  850  850  850  850
Depth B 1)  [mm]  850  850  850  850
Height C 1)  [mm]  1200  1200  1200  1200
Balancing speeds  [min -1]  120 - 1200  120 - 1200  120 - 1200  120 - 550
Accuracy, 2 planes 4)  [gmm]  2 - 4  4 -10  10 bis 20  20 - 50
Accuracy, 2 planes 4)  [gmm]  18 - 25  18 - 28  20 - 40  20 - 100
Power supply  [V]  400  400  400  400


Basic machine
Options
Measuring instrument CAB 920    •  •  •  •
Software options    o.r.  o.r.  o.r.  o.r.
Pneumatic unclamping system    •  •  •  •
Pneumatic spindle lock device    •  •  •  •
Balancing in two planes    •  •  •  •
Report printer  Bestell-Nr.  R0060105.01  R0060205.01
Protective device to ISO 7475    •  •
Mass correction system    o.r.  o.r.

1) Data non-binding, dependent on the respective equipment
2) Other data on request
3) Power supply: 3 / PE AC 50Hz 400 V +6 / -10%
4) Measuring uncertainty
o.r. on request
